Light Efficient Design

Products Description W Spec Sheets Instructions IES Files
LED-8280-50K 280W RETROFIT KIT 280W file file Coming Soon
LED-8280-50K-HV HIGH VOLTAGE 280W RETROFIT KIT 280W
RPT-LEDBLOCK-65L 30W RETROFIT KIT 30W file Coming Soon Coming Soon
RPT-LEDBLOCK-100L 52W RETROFIT KIT 52W
RPT-LEDBLOCK-150L 97W RETROFIT KIT 97W
RPT-LEDBLOCK-200L 124W RETROFIT KIT 124W
RPT-LEDBLOCK-300L 150W RETROFIT KIT 150W
RPT-LEDBLOCK-400L 277W RETROFIT KIT 277W

Videos

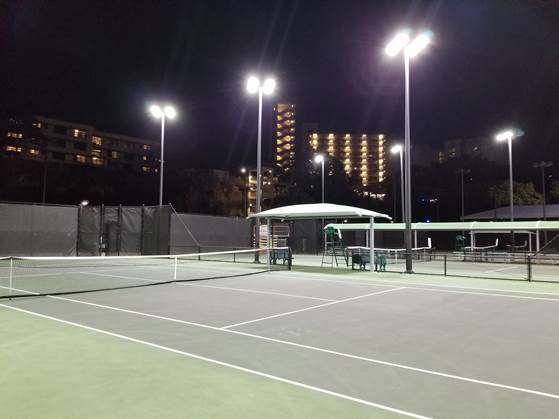

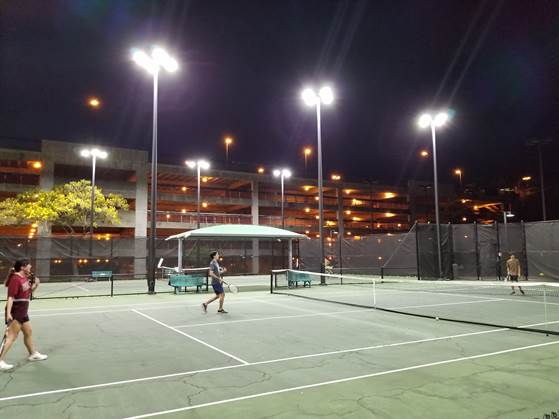

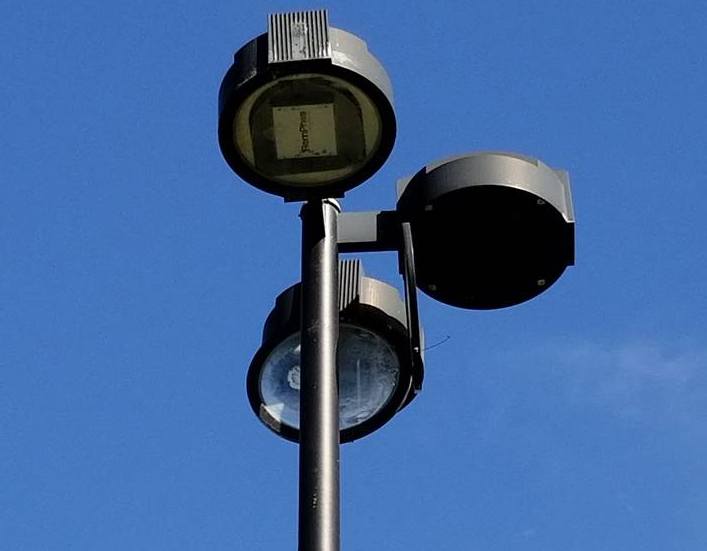

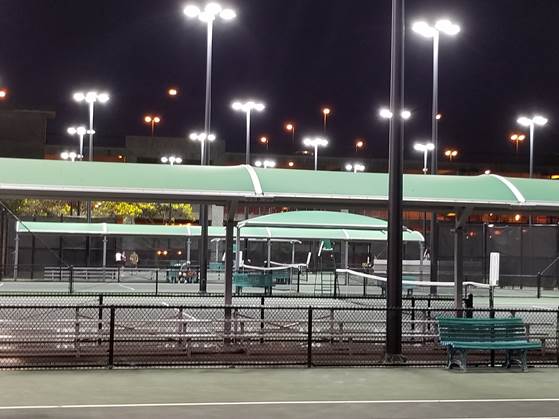

Installation Photos

Technical Documents

White Paper: Lighting Controls
  • Replaces up to 1000W MH or HPS HID Lamps.
  • Up to 39,200 lumen output and 112 LPW efficacy.
  • 5000K CCT
  • Secure Bolt on retrofit design, universal yoke mounting can be configured as a Shoe Box, HighBay, High Mast, or Canopy retrofit.
  • ETL approved for damp environments and enclosed fixtures.
  • Advanced active cooling: Active cooling keeps driver and LED array cool for full 50,000 hr rated LED life
Request A Sample
Rebates
Rep Finder

HID Retrofit Kits

Filter
Item Number CA 94577 Canada LUMENS MA 01949 NC 28208 NV 89431 PA 19030 POWER USED ProductSpecRule REPLACES TX 75061 VOLTAGE BASE CCT Unit Purchase
RPT-LEDBLOCK-300L-750-G3
RPT-LEDBLOCK-300L-750-G3
 0 BLANK 0
Call to order
RPT-LEDBLOCK-400L-750-G3
RPT-LEDBLOCK-400L-750-G3
 0 BLANK 0
Call to order
RETROFIT KIT 280W REPL 1000W
COUNTRY:
USA/CAN
CRI:
>70
DIMENSION _OL x W:
16.9" X 10.5"
DIMMABLE:
No
DUV:
N/A
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
N/A
MIN FIXTURE SIZE-W:
N/A
OPERATING TEMPERATURE:
-40°F to +113°F
PF:
>.90
R9:
N/A
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
ETL
SHIPPER CTN WEIGHT:
45 lbs
SHIPPER CTN_DIMS_(LxWxH):
17.5 X 18 X 18 In.
THD:
<20%
UCC-14:
10 8440060 8375 2
UNIT CTN WEIGHT:
14.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
17.3 X 16.5 X 6.02 In./
UPC-12:
8440060 8375 5
WARRANTY:
5 Year Limited
WEIGHT:
13 lbs.
LED-8280-50K
 0 23 39200 78 0 0 0 120-277V B Up to 1000W HID 17 305V N/A 5000K
Call to order
RETROFIT KIT 280W REPL 1000W
COUNTRY:
USA/CAN
CRI:
>.90
DIMENSION _OL x W:
16.9" X 10.5"
DIMMABLE:
No
DUV:
N/A
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
N/A
MIN FIXTURE SIZE-W:
N/A
OPERATING TEMPERATURE:
-40°F to +113°F
PF:
>.90
R9:
N/A
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
ETL
SHIPPER CTN WEIGHT:
45 lbs
THD:
<20%
UCC-14:
10 8440060 8376 9
UNIT CTN WEIGHT:
14.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
17.3 X 16.5 X 6.02 In./
UPC-12:
8440060 8376 2
WARRANTY:
5 Year Limited
WEIGHT:
13 lbs.
LED-8280-50K-HV
 0 0 39200 0 0 28 280W B 0 347-480VAC N/A 5000K
Call to order
