Light Efficient Design’s High Bay LED retrofits have been designed specifically for use in HID High Bay fixtures. Our form-follow-function product design delivers unsurpassed lumen output, broad even light distribution, easy installation and up to 80% in energy and labor savings over existing HID technology. All models utilize our Advanced Active Cooling technology delivering consistently higher LED efficacy and life when placed within enclosed fixtures.

High Bay Retrofits

  • Delivers up to 2x higher delivered lumens and efficacy compared to retrofits using generic LED “corn lamps”.
  • Wide, even light distribution eliminates “hot spot” usually seen with LED luminaires.
  • Available in 100W and 140W LED models replacing HID Lamps up to 400W.
  • Choice of 4000K or 5700K.
  • Safety rated and heat tested within fully enclosed fixtures from -40 to +122F ambient temperatures.
  • UL Listed 1993 and UL Classified 1598C (retrofitted fixture retains UL, EX39 models only) within USA and Canada.
  • Design Patents: 29/517,391; 29/454,181, 29/519,210

High Bay Retrofits | Light Efficient Design

Filter
Item Number CA 94577 Canada LUMENS NC 28208 PA 19030 POWER USED ProductSpecRule REPLACES TX 75061 VOLTAGE BASE CCT Unit Purchase

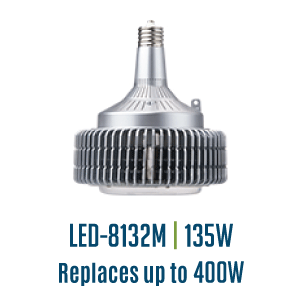

135W HIGH BAY RETROFIT
LED-8132M40
271 55 5 320 B 7
Call to order
150W HIGH BAY RETROFIT
LED-8130M50
-167 -3 0 -261 B -6
Call to order

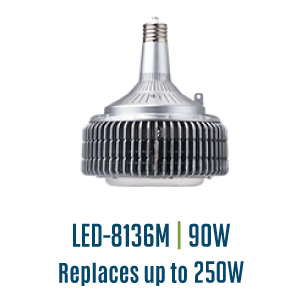

90W HIGH BAY RETROFIT
LED-8136M50
1441 6 9 178 B 0
Call to order

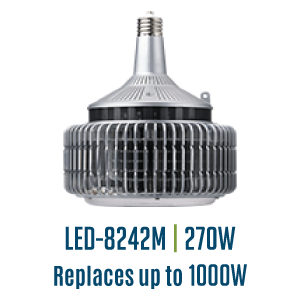

270W ENCLOSED HIGH BAY 4000K
LED-8242M40
90 -6 1 0 B 0
Call to order

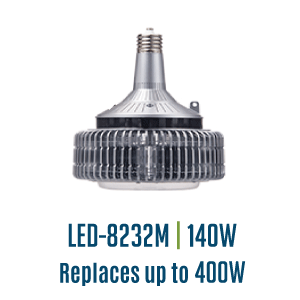

140W ENCLOSED HIGH BAY 4000K
LED-8232M40
25 30 0 730 B 0
Call to order
90W HIGH BAY RETROFIT
LED-8136M40
227 32 7 186 B 108
Call to order

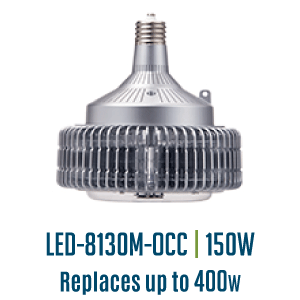

150W OPEN HIGH BAY 4000K OCC
LED-8130M40-OCC
9 55 186 B 0
Call to order

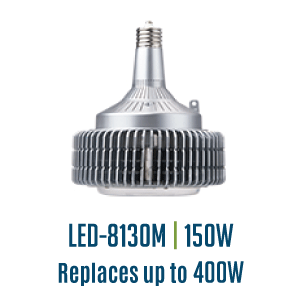

150W HIGH BAY RETROFIT
LED-8130M40
44 48 14 154 B 159
Call to order
135W HIGH BAY RETROFIT
LED-8132M50
275 31 4 202 B 105
Call to order

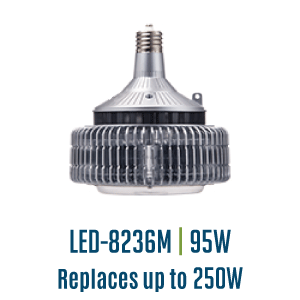

95W ENCLOSED HIGH BAY 4000K
LED-8236M40
282 47 276 B 3
Call to order
150W OPEN HIGH BAY 5000K OCC
LED-8130M50-OCC
283 45 340 B 0
Call to order
140W ENCLOSED HIGH BAY 5000K
LED-8232M50
68 85 0 3 B 59
Call to order
270W ENCLOSED HIGH BAY 5000K
LED-8242M50
169 8 7 277 B -8
Call to order
95W ENCLOSED HIGH BAY 5000K
LED-8236M50
480 44 10 1418 B 0
Call to order
HIGH BAY DLC 75W MOGUL 5000K
LED-8057M50-A
-48 15 0 -8 B -13
Call to order
OBS SO 100W, E39, 3000K
LED-8036M30
0 0 BLANK 0
Call to order
HIGH BAY DLC 75W MOGUL 3000K
LED-8057M30-A
132 3 0 2 B 0
Call to order
HIGH BAY DLC 75W MOGUL 4000K
LED-8057M40-A
8 20 5 602 B 83
Call to order
LOW BAY 100W MOGUL BASE 4000K
COUNTRY:
USA/CAN
CRI:
85.3
DIMENSION _OL x W:
7.75 X 7.9 in.
DIMMABLE:
No
DUV:
0.0008
LIGHT DISTRIBUTION:
Directional / 180°
MIN FIXTURE SIZE-H:
10.9
MIN FIXTURE SIZE-W:
9.1
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
96.0
R9:
20.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
16.9 Lbs
SHIPPER CTN_DIMS_(LxWxH):
20.6 X 10.6 X 19.9 in.
THD:
0.1463
UCC-14:
10 8440060 8113 0
UNIT CTN WEIGHT:
3.81 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
10 X 10 X 9.6 in.
UPC-12:
8440060 8113 3
WARRANTY:
5 Year Limited
WEIGHT:
2.76 Lbs
LED-8036M40-A
8 2 10656 0 1 100W U 250W HID 0 120-277V EX39 Protected Mogul 4000K
Call to order
LOW BAY 100W MOGUL BASE 4000K
COUNTRY:
USA/CAN
CRI:
84.0
DIMENSION _OL x W:
7.75 X 7.9 in.
DIMMABLE:
No
DUV:
0.00124
LIGHT DISTRIBUTION:
Directional / 180°
MIN FIXTURE SIZE-H:
10.9
MIN FIXTURE SIZE-W:
9.1
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.495
R9:
8.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
16.9 Lbs
SHIPPER CTN_DIMS_(LxWxH):
20.6 X 10.6 X 19.9 in.
THD:
46.09
UCC-14:
10 8440060 8262 5
UNIT CTN WEIGHT:
3.81 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
10 X 10 X 9.6 in.
UPC-12:
8440060 8262 8
WARRANTY:
5 Year Limited
WEIGHT:
2.76 Lbs

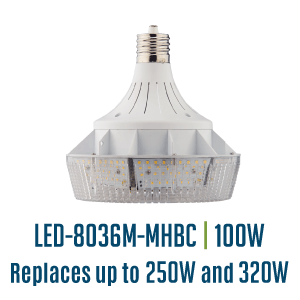

LED-8036M40-MHBC
0 3 11046 46 100W B Up to 320W Probe or Pulst Start Ballast 0 MH BALLAST ONLY EX39 Protected Mogul 4000K
Call to order
LOW BAY 100W MOGUL BASE 5700K
COUNTRY:
USA/CAN
CRI:
85.1
DIMENSION _OL x W:
7.75 X 7.9 in.
DIMMABLE:
No
DUV:
0.0025
LIGHT DISTRIBUTION:
Directional / 180°
MIN FIXTURE SIZE-H:
10.9
MIN FIXTURE SIZE-W:
9.1
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
96.0
R9:
15.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
16.9 Lbs
SHIPPER CTN_DIMS_(LxWxH):
20.6 X 10.6 X 19.9 in.
THD:
0.1493
UCC-14:
10 8440060 8114 7
UNIT CTN WEIGHT:
3.81 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
10 X 10 X 9.6 in.
UPC-12:
8440060 8114 0
WARRANTY:
5 Year Limited
WEIGHT:
2.76 Lbs
LED-8036M57-A
2 4 10798 0 13 100W U 250W HID 0 120-277V EX39 Protected Mogul 5700K
Call to order
LOW BAY 100W MOGUL BASE 5700K
COUNTRY:
USA/CAN
CRI:
86.2
DIMENSION _OL x W:
7.75 X 7.9 in.
DIMMABLE:
No
DUV:
0.00243
LIGHT DISTRIBUTION:
Directional / 180°
MIN FIXTURE SIZE-H:
10.9
MIN FIXTURE SIZE-W:
9.1
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.5
R9:
23.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
16.9 Lbs
SHIPPER CTN_DIMS_(LxWxH):
20.6 X 10.6 X 19.9 in.
THD:
45.95
UCC-14:
10 8440060 8263 2
UNIT CTN WEIGHT:
3.81 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
10 X 10 X 9.6 in.
UPC-12:
8440060 8263 5
WARRANTY:
5 Year Limited
WEIGHT:
2.76 Lbs
LED-8036M57-MHBC
472 2 10096 189 100W B Up to 320W Probe or Pulst Start Ballast 0 MH BALLAST ONLY EX39 Protected Mogul 5700K
Call to order
HIGH BAY 140W MOGUL BASE 4000K
COUNTRY:
USA/CAN
CRI:
84.0
DIMENSION _OL x W:
9.5" X 9.1"
DIMMABLE:
No
DUV:
0.0
LIGHT DISTRIBUTION:
Directional / 360°
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
12.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
97.0
R9:
13.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
12 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
23.8 X 12.2 X 12.7 in.
THD:
0.1578
UCC-14:
10 8440060 8008 9
UNIT CTN WEIGHT:
5.1 Lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.6 X 11.6 X 12.1 in.
UPC-12:
8440060 8008 2
WARRANTY:
5 Year Limited
WEIGHT:
3.85 Lbs
LED-8030M40-A
0 0 15763 0 4 140W U 400W HID 0 120-277V EX39 Protected Mogul 4000K
Call to order
HIGH BAY 140W MOGUL BASE 4000K
COUNTRY:
USA/CAN
CRI:
84.1
DIMENSION _OL x W:
9.5" X 9.1"
DIMMABLE:
No
DUV:
-0.00029
LIGHT DISTRIBUTION:
Directional / 360°
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
7.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.573
R9:
10.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
12 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
23.8 X 12.2 X 12.7 in.
THD:
33.08
UCC-14:
10 8440060 8264 9
UNIT CTN WEIGHT:
5.1 Lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.6 X 11.6 X 12.1 in.
UPC-12:
8440060 8264 2
WARRANTY:
5 Year Limited
WEIGHT:
3.85 Lbs

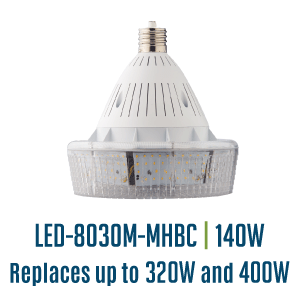

LED-8030M40-MHBC
405 31 18619 492 140W B Up to 400W Probe or Pulse Start 0 MH BALLAST ONLY EX39 Protected Mogul 4000K
Call to order
HIGH BAY 140W MOGUL BASE 5700K
COUNTRY:
USA/CAN
CRI:
84.1
DIMENSION _OL x W:
9.5" X 9.1"
DIMMABLE:
No
DUV:
0.00161
LIGHT DISTRIBUTION:
Directional / 360°
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
7.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.583
R9:
26.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
12 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
23.8 X 12.2 X 12.7 in.
THD:
32.72
UCC-14:
10 8440060 8265 6
UNIT CTN WEIGHT:
5.1 Lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.6 X 11.6 X 12.1 in.
UPC-12:
8440060 8265 9
WARRANTY:
5 Year Limited
WEIGHT:
3.85 Lbs
LED-8030M57-MHBC
212 152 17047 0 240 140W B Up to 400W Probe or Pulse Start 0 MH BALLAST ONLY EX39 Protected Mogul 5700K
Call to order
HIGH BAY 140W MOGUL BASE 4000K
COUNTRY:
USA/CAN
CRI:
84.3
DIMENSION _OL x W:
9.5" X 9.1"
DIMMABLE:
No
DUV:
0.0007
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
12.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
98.0
R9:
13.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
12 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
23.8 X 12.2 X 12.7 in.
THD:
0.149
UCC-14:
10 8440060 8150 5
UNIT CTN WEIGHT:
5.1 Lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.6 X 11.6 X 12.1 in.
UPC-12:
8440060 8150 8
WARRANTY:
5 Year Limited
WEIGHT:
3.96 Lbs
LED-8032M40-A
1 0 16407 0 1 140W U 400W HID 0 120-277V EX39 Protected Mogul 4000K
Call to order
HIGH BAY 140W MOGUL BASE 4000K
COUNTRY:
USA/CAN
CRI:
84.3
DIMENSION _OL x W:
9.5" X 9.1"
DIMMABLE:
No
DUV:
-0.00036
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
7.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.583
R9:
9.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
12 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
23.8 X 12.2 X 12.7 in.
THD:
32.87
UCC-14:
10 8440060 8266 3
UNIT CTN WEIGHT:
5.1 Lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.6 X 11.6 X 12.1 in.
UPC-12:
8440060 8266 6
WARRANTY:
5 Year Limited
WEIGHT:
3.96 Lbs

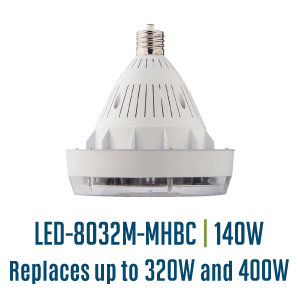

LED-8032M40-MHBC
0 -1 19578 -8 140W B Up to 400W Probe or Pulse Start 0 MH BALLAST ONLY EX39 Protected Mogul 4000K
Call to order
HIGH BAY 140W MOGUL BASE 5700K
COUNTRY:
USA/CAN
CRI:
84.7
DIMENSION _OL x W:
9.5" X 9.1"
DIMMABLE:
No
DUV:
0.0027
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
12.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
98.0
R9:
12.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
12 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
23.8 X 12.2 X 12.7 in.
THD:
0.1457
UCC-14:
10 8440060 8151 2
UNIT CTN WEIGHT:
5.1 Lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.6 X 11.6 X 12.1 in.
UPC-12:
8440060 8151 5
WARRANTY:
5 Year Limited
WEIGHT:
3.96 Lbs
LED-8032M57-A
7 2 16605 0 4 140W U 400W HID 0 120-277V EX39 Protected Mogul 5700K
Call to order
HIGH BAY 140W MOGUL BASE 5700K
COUNTRY:
USA/CAN
CRI:
86.3
DIMENSION _OL x W:
9.5" X 9.1"
DIMMABLE:
No
DUV:
0.00151
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
7.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.583
R9:
26.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
12 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
23.8 X 12.2 X 12.7 in.
THD:
32.77
UCC-14:
10 8440060 8267 0
UNIT CTN WEIGHT:
5.1 Lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.6 X 11.6 X 12.1 in.
UPC-12:
8440060 8267 3
WARRANTY:
5 Year Limited
WEIGHT:
3.96 Lbs
LED-8032M57-MHBC
23 29 17892 292 140W B Up to 400W Probe or Pulse Start 0 MH BALLAST ONLY EX39 Protected Mogul 5700K
Call to order
HIGH BAY 150W MOGUL BASE 5000K
COUNTRY:
USA/CAN
CRI:
85.7
DIMENSION _OL x W:
10 X 10 in.
DIMMABLE:
Yes
DUV:
0.0021
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
12.3
MIN FIXTURE SIZE-W:
13.8
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
99.0
R9:
20.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
17 Lbs
SHIPPER CTN_DIMS_(LxWxH):
24.2 X 13 X 14.6 in.
THD:
0.0623
UCC-14:
10 8440060 8234 2
UNIT CTN WEIGHT:
8.2 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.8 X 12.4 X 14 in.
UPC-12:
8440060 8234 5
WARRANTY:
5 Year Limited
WEIGHT:
Lamp 4.4 Driver 2.7 Lbs

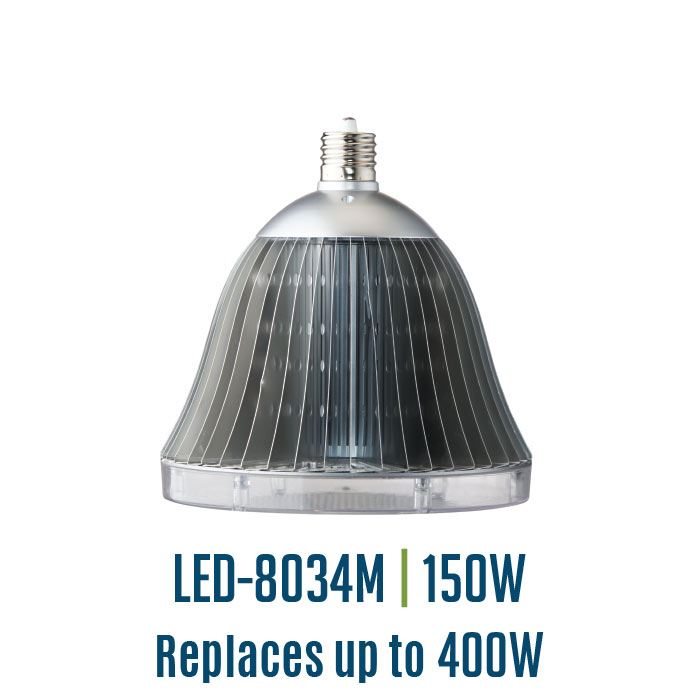

LED-8034M50
0 0 19344 0 0 150W B 400W HID 0 90-305VAC EX39 Protected Mogul 5000K
Call to order
HIGH BAY 150W MOGUL BASE 5000K
COUNTRY:
USA/CAN
CRI:
85.7
DIMENSION _OL x W:
10 X 10 in.
DIMMABLE:
Yes
DUV:
-0.002
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
12.3
MIN FIXTURE SIZE-W:
13.8
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
98.0
R9:
20.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cUL
SHIPPER CTN WEIGHT:
17 Lbs
SHIPPER CTN_DIMS_(LxWxH):
24.2 X 13 X 14.6 in.
THD:
0.0825
UCC-14:
10 8440060 8235 9
UNIT CTN WEIGHT:
8.2 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
11.8 X 12.4 X 14 in.
UPC-12:
8440060 8235 2
WARRANTY:
5 Year Limited
WEIGHT:
Lamp 4.4 Driver 2.7 Lbs
LED-8034M50-HV
0 0 19022 0 150W BLANK 400W HID 0 180-528VAC EX39 Protected Mogul 5000K
Call to order
HIGH BAY 300W MOGUL BASE 5000K
COUNTRY:
USA/CAN
CRI:
71.6
DIMENSION _OL x W:
12.5 X 12.5 in
DIMMABLE:
Yes
DUV:
0.0026
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
14.5
MIN FIXTURE SIZE-W:
16.2
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
98.0
R9:
0.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cUL
SHIPPER CTN WEIGHT:
26 Lbs
SHIPPER CTN_DIMS_(LxWxH):
28.7 X 14.6 X 14.8 in.
THD:
0.0741
UCC-14:
10 8440060 8199 4
UNIT CTN WEIGHT:
12.5 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
14 X 14 X 14.2 in.
UPC-12:
8440060 8199 7
WARRANTY:
5 Year Limited
WEIGHT:
7.4 lbs

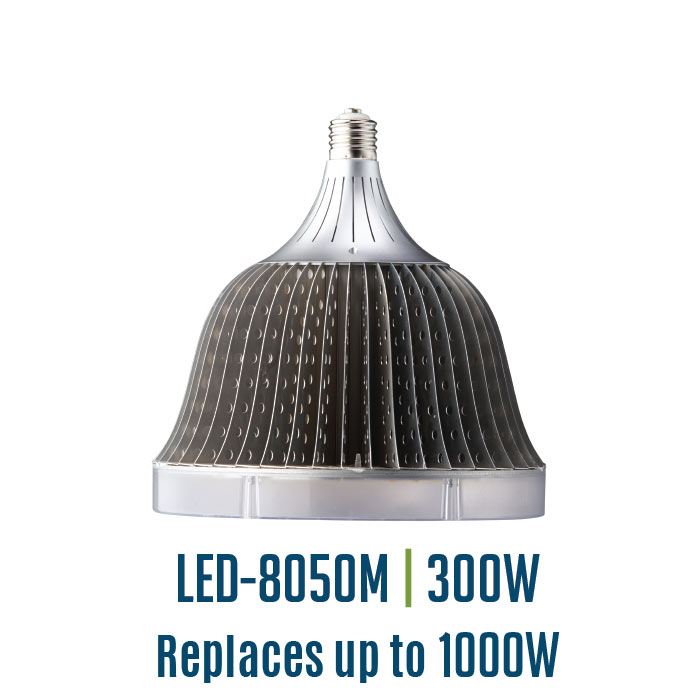

LED-8050M50-HV
0 0 33533 0 8 300W U 1000W HID 0 249-528VAC EX39 Protected Mogul 5000K
Call to order
SIGN UP FOR OUR NEWSLETTER
