Light Efficient Design’s PL lamps are designed to provide an energy efficient and reliable option for replacing compact fluorescent lamps.

PL LED Retrofits:

  • Some models will allow operation on direct line voltage or with a Ballast.
  • Several configurations are available to provide the optimal lighting for each application
  • Replaces up to 32W fluorescent lamps.
  • Rated for open fixtures only
  • UL Listed 1993 and UL Classified 1598C (retrofitted fixture retains UL) within USA and Canada.

Find The Right Retrofit

PL LED Retrofits

Filter
Item Number LUMENS POWER USED REPLACES VOLTAGE BASE CCT Unit Purchase

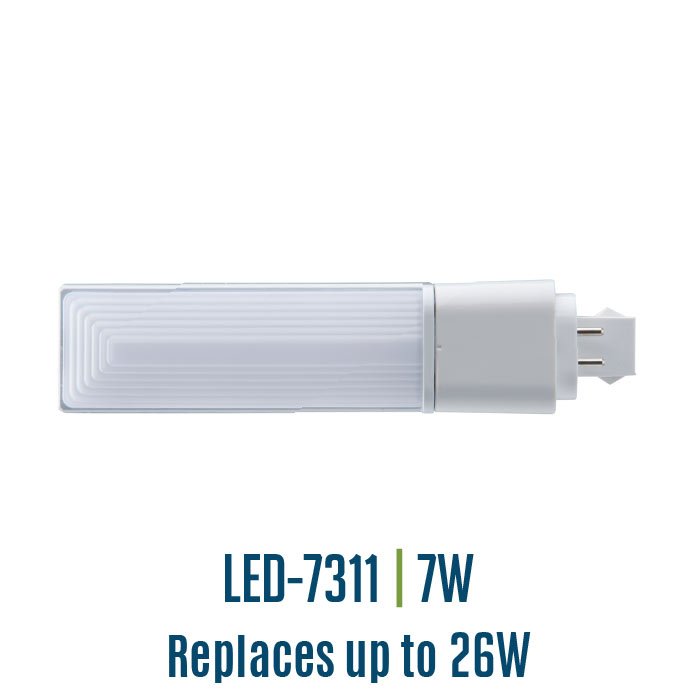

LED-7311-27A
COUNTRY:
ALL
CRI:
81.7
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
0.0007
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
5.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
18.0
UCC-14:
10 8440060 7319 7
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7319 0
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
815 7W Up to 18W 2 Pin PL CFL 120-277V G23-2 2700K
Call to order
LED-7311-35A
COUNTRY:
ALL
CRI:
85.1
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
-0.001
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
19.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
19.0
UCC-14:
10 8440060 7320 3
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7320 6
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
883 7W Up to 18W 2 Pin PL CFL 120-277V G23-2 3500K
Call to order
LED-7311-40A
COUNTRY:
ALL
CRI:
84.0
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
0.0018
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
15.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
15.0
UCC-14:
10 8440060 7321 0
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7321 3
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
892 7W Up to 18W 2 Pin PL CFL 120-277V G23-2 4000K
Call to order

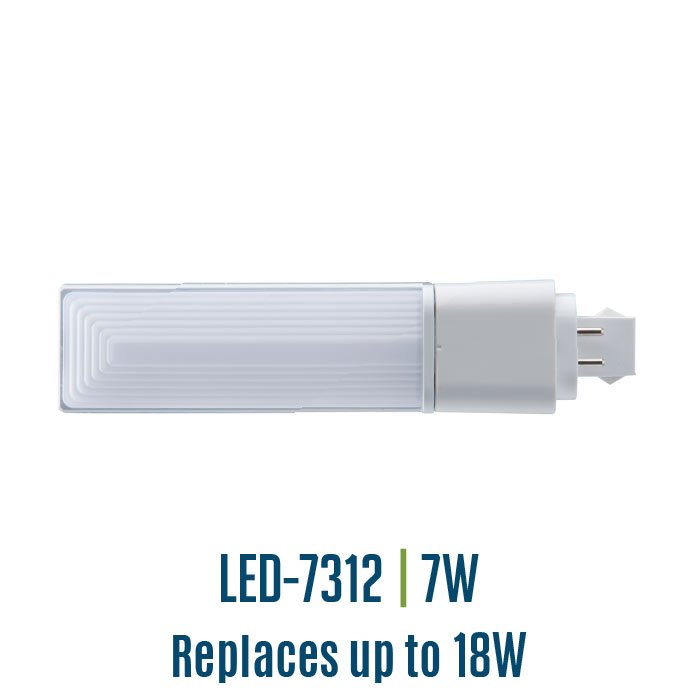

LED-7312-27A
COUNTRY:
ALL
CRI:
81.9
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
0.0009
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
6.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
19.0
UCC-14:
10 8440060 7322 7
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7322 0
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
801 7W Up to 18W 2 Pin PL CFL 120-277V GX23-2 2700K
Call to order
LED-7312-35A
COUNTRY:
ALL
CRI:
84.9
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
-0.0012
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
18.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
18.0
UCC-14:
10 8440060 7323.4
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7323 7
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
899 7W Up to 18W 2 Pin PL CFL 120-277V GX23-2 3500K
Call to order
LED-7312-40A
COUNTRY:
ALL
CRI:
83.9
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
0.0018
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
15.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
18.0
UCC-14:
10 8440060 7324 1
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7324 4
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
914 7W Up to 18W 2 Pin PL CFL 120-277V GX23-2 4000K
Call to order
LED-7318-27A
COUNTRY:
ALL
CRI:
>80
DIMENSION _OL x W:
3.78 X 2.99 in./96 X 76 mm.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
20 lb./9.1 kg.
SHIPPER CTN_DIMS_(LxWxH):
18.1 X 9.44 X 6.88 in./460 X 240 X 175 mm.
UCC-14:
10 8440060 7350 0
UNIT CTN WEIGHT:
0.4 lbs./.18 kg.
UNIT CTN_DIMENSIONS _LxWxH:
3.2 X 3.2 X 4.7 in./81 X 81 X 119 mm.
UPC-12:
8440060 7350 3
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1100 12W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 2700K
Call to order
LED-7318-35A
COUNTRY:
ALL
CRI:
>80
DIMENSION _OL x W:
3.78 X 2.99 in./96 X 76 mm.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
20 lb./9.1 kg.
SHIPPER CTN_DIMS_(LxWxH):
18.1 X 9.44 X 6.88 in./460 X 240 X 175 mm.
UCC-14:
10 8440060 7351 7
UNIT CTN WEIGHT:
0.4 lbs./.18 kg.
UNIT CTN_DIMENSIONS _LxWxH:
3.2 X 3.2 X 4.7 in./81 X 81 X 119 mm.
UPC-12:
8440060 7351 0
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1100 12W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 3500K
Call to order
LED-7318-40A
COUNTRY:
ALL
CRI:
>80
DIMENSION _OL x W:
3.78 X 2.99 in./96 X 76 mm.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
20 lb./9.1 kg.
SHIPPER CTN_DIMS_(LxWxH):
18.1 X 9.44 X 6.88 in./460 X 240 X 175 mm.
UCC-14:
10 8440060 7352 4
UNIT CTN WEIGHT:
0.4 lbs./.18 kg.
UNIT CTN_DIMENSIONS _LxWxH:
3.2 X 3.2 X 4.7 in./81 X 81 X 119 mm.
UPC-12:
8440060 7352 7
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1100 12W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 4000K
Call to order

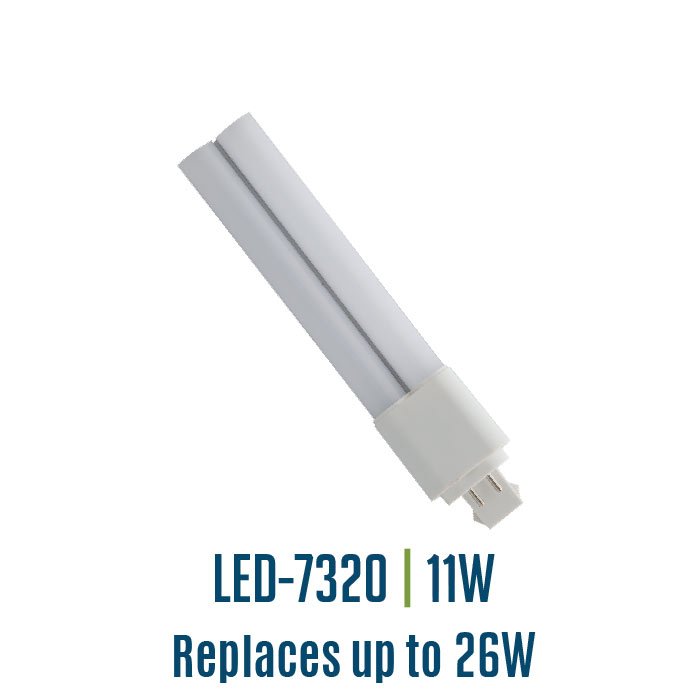

LED-7320-27A
COUNTRY:
ALL
CRI:
85.4
DIMENSION _OL x W:
6.2 X 1.4 in./157 X 35 mm.
DIMMABLE:
No
DUV:
-0.0017
LIGHT DISTRIBUTION:
Omni-directional / 360°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.885
R9:
7.0
RATED LED LIFE:
35,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
45 lb./20.1 kg.
SHIPPER CTN_DIMS_(LxWxH):
10.5 X 7.25 X 7.25 in./266 X 184 X 184 mm.
UCC-14:
10 8440060 7343 2
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.25 X 1.6 X 1.6 in./159 X 41 X 41 mm.
UPC-12:
8440060 7343 5
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1065 11W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 2700K
Call to order
LED-7320-35A
COUNTRY:
ALL
CRI:
84.9
DIMENSION _OL x W:
6.2 X 1.4 in./157 X 35 mm.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Omni-directional / 360°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
RATED LED LIFE:
35,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
45 lb./20.1 kg.
SHIPPER CTN_DIMS_(LxWxH):
10.5 X 7.25 X 7.25 in./266 X 184 X 184 mm.
UCC-14:
10 8440060 7342 5
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.25 X 1.6 X 1.6 in./159 X 41 X 41 mm.
UPC-12:
8440060 7342 8
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1100 11W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 3500K
Call to order
LED-7320-40A
COUNTRY:
ALL
CRI:
84.9
DIMENSION _OL x W:
6.2 X 1.4 in./157 X 35 mm.
DIMMABLE:
No
DUV:
-0.0017
LIGHT DISTRIBUTION:
Omni-directional / 360°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.886
R9:
8.0
RATED LED LIFE:
35,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
45 lb./20.1 kg.
SHIPPER CTN_DIMS_(LxWxH):
10.5 X 7.25 X 7.25 in./266 X 184 X 184 mm.
UCC-14:
10 8440060 7344 9
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.25 X 1.6 X 1.6 in./159 X 41 X 41 mm.
UPC-12:
8440060 7344 2
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1167 11W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 4000K
Call to order
LED-7322-27A
COUNTRY:
ALL
CRI:
81.9
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
0.0008
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
6.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
19.0
UCC-14:
10 8440060 7337 1
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7337 4
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
849 7W Up to 26W 2 Pin PL CFL 120-277V G24d 2700K
Call to order
LED-7322-35A
COUNTRY:
ALL
CRI:
85.0
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
-0.001
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
18.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
19.0
UCC-14:
10 8440060 7348 7
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7348 0
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
869 7W Up to 26W 2 Pin PL CFL 120-277V G24d 3500K
Call to order
LED-7322-40A
COUNTRY:
ALL
CRI:
84.1
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
No
DUV:
0.003
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
PF:
0.9
R9:
12.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
15.9 X 7.3 X 4.9 in./ 405 X 185 X 125 mm.
THD:
19.0
UCC-14:
10 8440060 7340 1
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
6.9 X 2.4 X 2.2 in./ 175 X 60 X 55 mm.
UPC-12:
8440060 7340 4
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
887 7W Up to 26W 2 Pin PL CFL 120-277V G24d 4000K
Call to order

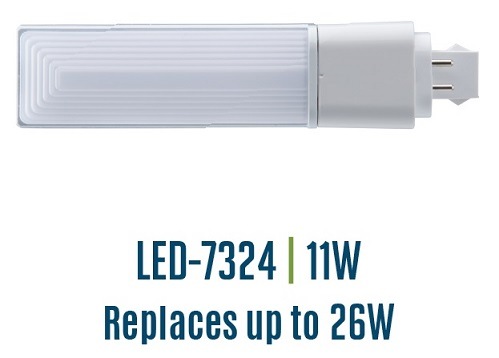

LED-7324-27K-G2
COUNTRY:
ALL
CRI:
>80
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
Yes
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
12.5 X 15.6 X 5.1 in./ 320 X 395 X 130 mm.
UCC-14:
10 8440060 7339 5
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 2.2 X 2.4 in./ 150 X 55 X 60 mm.
UPC-12:
8440060 7339 8
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1200 11W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 2700K
Call to order
LED-7324-35K-G2
COUNTRY:
ALL
CRI:
>80
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
Yes
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
12.5 X 15.6 X 5.1 in./ 320 X 395 X 130 mm.
UCC-14:
10 8440060 7349 4
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 2.2 X 2.4 in./ 150 X 55 X 60 mm.
UPC-12:
8440060 7349 7
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1200 11W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 3500K
Call to order
LED-7324-40K-G2
COUNTRY:
ALL
CRI:
>80
DIMENSION _OL x W:
5.75 X 1.374 in./146 X 35 mm.
DIMMABLE:
Yes
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
n/a
MIN FIXTURE SIZE-W:
n/a
OPERATING TEMPERATURE:
0°F to +85°F / -17°C to +30°C
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
4 lbs./1.8 kg.
SHIPPER CTN_DIMS_(LxWxH):
12.5 X 15.6 X 5.1 in./ 320 X 395 X 130 mm.
UCC-14:
10 8440060 7341 8
UNIT CTN WEIGHT:
0.3 lbs/.13 kg.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 2.2 X 2.4 in./ 150 X 55 X 60 mm.
UPC-12:
8440060 7341 1
WARRANTY:
5 Year Limited
WEIGHT:
0.4 Lbs/.18 kg.
1200 11W Up to 32W 4 Pin PL CFL 120-277V G24q/GX24q 4000K
Call to order
