Light Efficient Design

Light Efficient Design’s Recessed / PAR LED retrofits have been designed specifically for use in recessed can and flood fixtures. Our innovative designs deliver unsurpassed lumen output and are easy to install. Save up to 80% in energy and labor over existing HID technology. Advanced Active Cooling technology delivers consistently higher LED efficacy and longer life when placed within enclosed fixtures.

Recessed / PAR Retrofit Lamps

  • Available in 30W and 50W LED models replacing up to 175W.
  • Choice of 2700K, 4200K or 5000K/5700K
  • UL Listed 1993 and UL Classified 1598C (retrofitted fixture retains UL, E39 models only) within USA and Canada.
  • Find the LED-8054-DIM dimmer compatibility list here

Recessed Can Retrofit Lamp | Light Efficient Design

Filter
Item Number CA 94577 Canada LUMENS MA 01949 NC 28208 NV 89431 PA 19030 POWER USED ProductSpecRule REPLACES TX 75061 VOLTAGE BASE CCT Unit Purchase
PL 25W E26 4000K REPL 100W

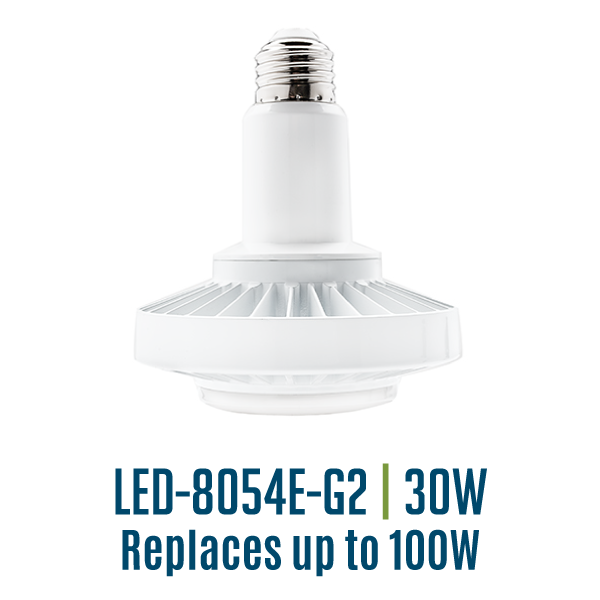

LED-8054E40
 0 0 0 0 8 BLANK 0
Call to order
PL 25W E26 5000K REPL 100W
LED-8054E50
 0 0 0 0 0 BLANK 0
Call to order
PL 25W E26 3500K REPL 100W
LED-8054E35
 0 0 0 0 0 BLANK 0
Call to order
PL 25W E26 2700K, REPL 100W
LED-8054E27
 0 0 0 264 0 U 0
Call to order
RECESSED CAN 30W EDISON 2700K
COUNTRY:
USA/CAN
CRI:
82.2
DIMENSION _OL x W:
6 x 4.7 in.
DIMMABLE:
No
DUV:
-0.0012
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
13.3
MIN FIXTURE SIZE-W:
8.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.9
R9:
9.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
13.4
UCC-14:
10 8440060 8115 4
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8115 7
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs

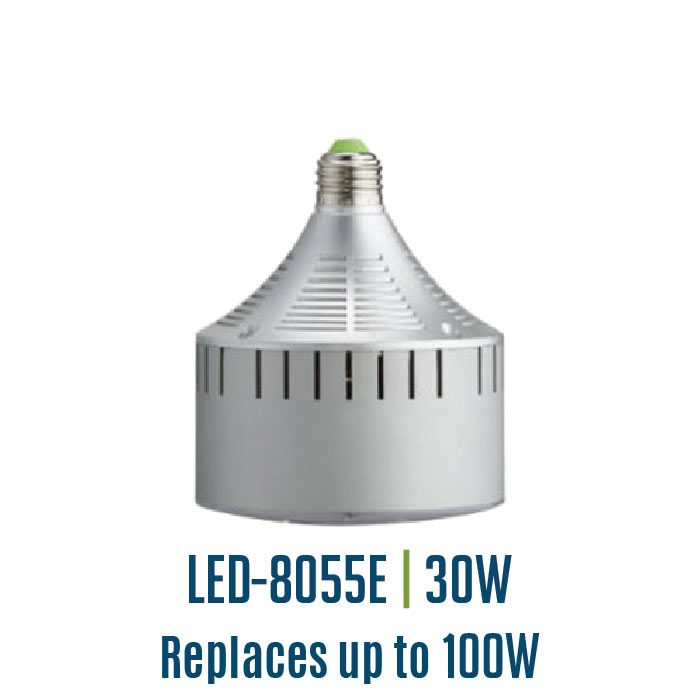

LED-8055E27
 0 0 2537 0 0 0 30W BLANK 100W HID 0 120-277V E26 Edison 2700K
Call to order
RECESSED CAN 30W EDISON 2700K
COUNTRY:
USA/CAN
CRI:
82.2
DIMENSION _OL x W:
6 x 4.7 in.
DIMMABLE:
No
DUV:
-0.0012
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.9
R9:
9.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cUL
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
13.4
UCC-14:
10 8440060 8122 2
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8122 5
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs
LED-8055E27C
 0 2537 30W BLANK 100W HID 120-347V E26 Edison 2700K
Call to order
RECESSED CAN 30W EDISON 4200K
COUNTRY:
USA/CAN
CRI:
88.0
DIMENSION _OL x W:
6 x 4.7 in.
DIMMABLE:
No
DUV:
0.00127
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
13.3
MIN FIXTURE SIZE-W:
8.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.911
R9:
29.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
13.4
UCC-14:
10 8440060 8116 1
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8116 4
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs
LED-8055E42
 0 0 2841 0 0 0 30W BLANK 100W HID 0 120-277V E26 Edison 4200K
Call to order
RECESSED CAN 30W EDISON 4200K
COUNTRY:
USA/CAN
CRI:
88.0
DIMENSION _OL x W:
6 x 4.7 in.
DIMMABLE:
No
DUV:
0.00127
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.911
R9:
29.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cUL
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
13.4
UCC-14:
10 8440060 8213 7
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8123 2
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs
LED-8055E42C
 0 2841 30W BLANK 100W HID 120-347V E26 Edison 4200K
Call to order
RECESSED CAN 30W EDISON 5700K
COUNTRY:
USA/CAN
CRI:
88.3
DIMENSION _OL x W:
6 x 4.7 in.
DIMMABLE:
No
DUV:
-0.001
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
13.3
MIN FIXTURE SIZE-W:
8.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.918
R9:
37.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
10.9
UCC-14:
10 8440060 8117 8
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8117 1
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs
LED-8055E57
 0 0 2885 0 0 30W U 100W HID 0 120-277V E26 Edison 5700K
Call to order
RECESSED CAN 30W EDISON 5700K
COUNTRY:
USA/CAN
CRI:
88.3
DIMENSION _OL x W:
6 x 4.7 in.
DIMMABLE:
No
DUV:
-0.001
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.918
R9:
37.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cUL
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
10.9
UCC-14:
10 8440060 8124 6
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8124 9
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs
LED-8055E57C
 0 2885 30W BLANK 100W HID 120-347V E26 Edison 5700K
Call to order
RECESSED CAN 30W MOGUL 2700K
COUNTRY:
USA/CAN
CRI:
82.2
DIMENSION _OL x W:
6.8 x 4.7 in.
DIMMABLE:
No
DUV:
-0.0012
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
13.3
MIN FIXTURE SIZE-W:
8.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.9
R9:
9.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
13.4
UCC-14:
10 8440060 8185 7
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8185 0
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs

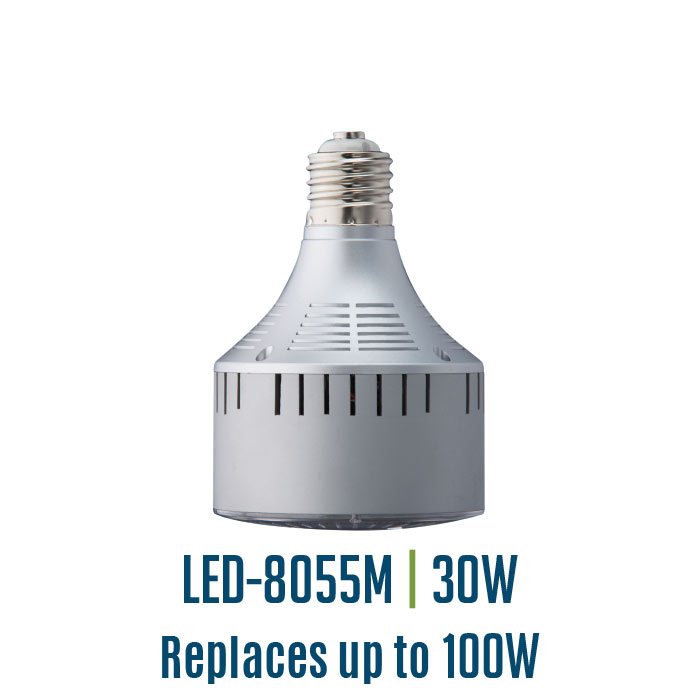

LED-8055M27
 0 2537 0 0 0 30W B 100W HID 0 120-277V E39 Mogul 2700K
Call to order
RECESSED CAN 30W MOGULL 4200K
COUNTRY:
USA/CAN
CRI:
88.0
DIMENSION _OL x W:
6.8 x 4.7 in.
DIMMABLE:
No
DUV:
0.00127
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
13.3
MIN FIXTURE SIZE-W:
8.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.911
R9:
29.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
13.4
UCC-14:
10 8440060 8186 4
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8186 7
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs
LED-8055M42
 0 0 2841 0 0 0 30W U 100W HID 0 120-277V E39 Mogul 4200K
Call to order
RECESSED CAN 30W MOGUL 5700K
COUNTRY:
USA/CAN
CRI:
88.3
DIMENSION _OL x W:
6.8 x 4.7 in.
DIMMABLE:
No
DUV:
-0.001
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
13.3
MIN FIXTURE SIZE-W:
8.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.918
R9:
37.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
11.02 Lbs.
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
10.9
UCC-14:
10 8440060 8187 1
UNIT CTN WEIGHT:
1.8 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8187 4
WARRANTY:
5 Year Limited
WEIGHT:
1.32 Lbs
LED-8055M57
 0 0 2885 0 0 0 30W BLANK 100W HID 0 120-277V E39 Mogul 5700K
Call to order
RECESSED CAN 45W MOGUL 4000K
COUNTRY:
USA/CAN
CRI:
83.8
DIMENSION _OL x W:
8.5 X 4.9 in.
DIMMABLE:
Yes
DUV:
0.0006
LIGHT DISTRIBUTION:
Directional / 120°
MIN FIXTURE SIZE-H:
13.3
MIN FIXTURE SIZE-W:
8.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.99
R9:
13.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
11 lbs
SHIPPER CTN_DIMS_(LxWxH):
20.9 X 17.5 X 11 in.
THD:
0.0575
UCC-14:
10 8440060 8229 8
UNIT CTN WEIGHT:
2.55 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
8.5 X 6.7 X 10.3 in.
UPC-12:
8440060 8229 1
WARRANTY:
5 Year Limited
WEIGHT:
1.4 lbs.
LED-8082M40
 0 0 5010 0 0 45W BLANK 175W HID/ 500W Halogen 0 120-277V E39 Mogul 4000K
Call to order
RECESSED CAN 50W MOGUL 2700K
COUNTRY:
USA/CAN
CRI:
81.0
DIMENSION _OL x W:
7.1 x 4.7 in.
DIMMABLE:
No
DUV:
-.0002
LIGHT DISTRIBUTION:
Directional / 45°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
.932
R9:
11.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
9.636 Lbs
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
.163
UCC-14:
10 8440060 8009 6
UNIT CTN WEIGHT:
2.134 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8009 9
WARRANTY:
5 Year Limited
WEIGHT:
1.78 Lbs

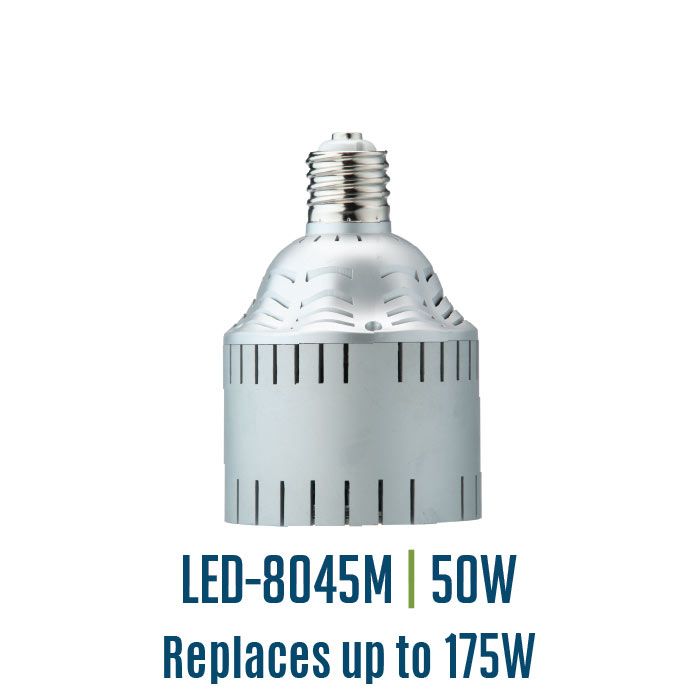

LED-8045M27
 0 0 3506 0 0 50W BLANK 175W HID 0 120-277V E39 Mogul 2700K
Call to order
RECESSED CAN 50W MOGUL 2700K
COUNTRY:
USA/CAN
CRI:
81.0
DIMENSION _OL x W:
7.1 x 4.7 in.
DIMMABLE:
No
DUV:
-.0002
LIGHT DISTRIBUTION:
Directional / 45°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
.932
R9:
11.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cUL
SHIPPER CTN WEIGHT:
9.636 Lbs
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
.163
UCC-14:
10 8440060 8107 9
UNIT CTN WEIGHT:
2.1 lbs
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8107 2
WARRANTY:
5 Year Limited
WEIGHT:
1.78 Lbs
LED-8045M27C
 0 3506 50W BLANK 175W HID 120-347V E39 Mogul 2700K
Call to order
RECESSED CAN 50W MOGUL 4200K
COUNTRY:
USA/CAN
CRI:
80.1
DIMENSION _OL x W:
7.1 x 4.7 in.
DIMMABLE:
No
DUV:
-.0011
LIGHT DISTRIBUTION:
Directional / 45°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
.9433
R9:
7.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
9.636 Lbs
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
16.69
UCC-14:
10 8440060 8046 1
UNIT CTN WEIGHT:
2.134 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8046 4
WARRANTY:
5 Year Limited
WEIGHT:
1.78 Lbs
LED-8045M42
 0 0 4341 0 0 1 164 50W U 175W HID 5 120-277V E39 Mogul 4200K
Call to order
RECESSED CAN 50W MOGUL 4200K
COUNTRY:
USA/CAN
CRI:
80.1
DIMENSION _OL x W:
7.1 x 4.7 in.
DIMMABLE:
No
DUV:
-.0011
LIGHT DISTRIBUTION:
Directional / 45°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
.9433
R9:
7.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cUL
SHIPPER CTN WEIGHT:
9.636 Lbs
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
16.69
UCC-14:
10 8440060 8108 6
UNIT CTN WEIGHT:
2.1 lbs
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8108 9
WARRANTY:
5 Year Limited
WEIGHT:
1.78 Lbs
LED-8045M42C
 21 4341 50W C 175W HID 120-347V E39 Mogul 4200K
Call to order
RECESSED CAN 50W MOGUL 5700K
COUNTRY:
USA/CAN
CRI:
82.2
DIMENSION _OL x W:
7.1 x 4.7 in.
DIMMABLE:
No
DUV:
.0008
LIGHT DISTRIBUTION:
Directional / 45°
MIN FIXTURE SIZE-H:
9.0
MIN FIXTURE SIZE-W:
7.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
.9477
R9:
14.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
9.636 Lbs
SHIPPER CTN_DIMS_(LxWxH):
12.8 X 12.8 X 9.1 in.
THD:
17.02
UCC-14:
10 8440060 8045 4
UNIT CTN WEIGHT:
2.134 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
6.1 X 6.1 x 8.5 in.
UPC-12:
8440060 8045 7
WARRANTY:
5 Year Limited
WEIGHT:
1.78 Lbs
LED-8045M50
 0 7 4886 0 0 0 50W U 175W HID 0 120-277V E39 Mogul 5000K
Call to order
