Innovative flat panel design is a perfect match for pole mounted shoe box fixtures and wall packs. Directional LED array delivers superior light distribution and intensity versus generic “corn lamp retrofits”. All models utilize our Advanced Active Cooling technology delivering consistently higher LED efficacy and life when placed within enclosed fixtures.

Shoe Box / Wall Pack Retrofit Lamps

  • Ballast Bypass Compact design delivers wide, even light distribution when retrofitted into shoe box or wall pack fixtures.
  • Easy to install, reliable retrofits provide an energy savings up to 80%.
  • Rotatable E26/E39 Screw Base insures that light output is directed to where it is needed.
  • Delivers higher delivered lumens and efficacy compared to shoe box retrofits using generic LED “corn lamps”.
  • Available in 30W, 50W, 80W and 110W models replacing HID Lamps up to 400W.
  • Choice of 3000K, 4000K, or 5000/5700K
  • 110W Model also available in Type III and Type IV light distribution.
  • Advanced Active Cooling technology includes dynamic temperature monitoring, computer designed high efficiency heat sink and long life active cooling fan. Superior heat management results in consistently higher performance and long LED life.
  • Safety rated and heat tested within fully enclosed fixtures from -40 to +122F ambient temperatures.
  • UL Listed 1993 and UL Classified 1598C (retrofitted fixture retains UL, E39 models only) within USA and Canada.
  • Patent pending on supports #14/710,301patent pending on supports #14/710,301

Shoe Box / Wall Pack Retrofits | Light Efficient Design

Filter
Item Number CA 94577 Canada LUMENS NC 28208 PA 19030 POWER USED ProductSpecRule REPLACES TX 75061 VOLTAGE BASE CCT Unit Purchase
110W SHOEBOX/WALL PACK

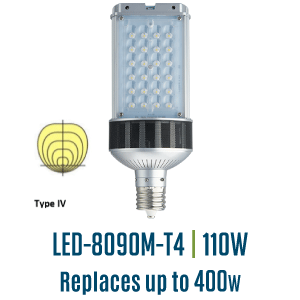

LED-8090M50-G4-T4
405 60 2 B 7
Call to order
SB RETRO KIT W/SENSOR+REMOTE
LED-8090M40-G4-DIM
0 0 0 0 BLANK 0
Call to order
SHOE BOX 110W MOGUL 5000K

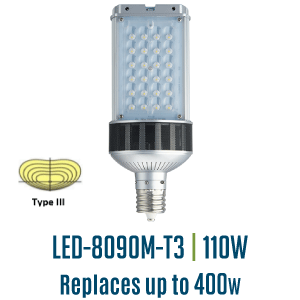

LED-8090M50-G4-T3
69 5 200 B 0
Call to order
SB RETRO KIT W/SENSOR+REMOTE
LED-8090M50-G4-DIM
0 0 0 0 BLANK 0
Call to order
SHOE BOX 50W EDISON 5000K

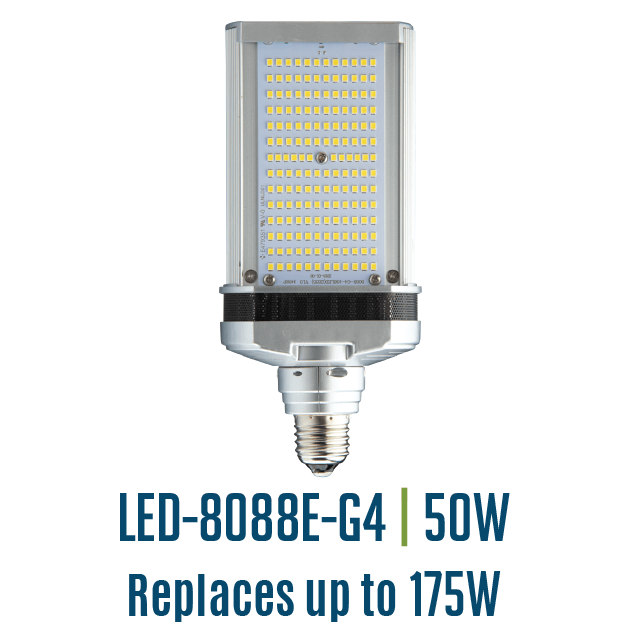

LED-8088E50-G4
88 91 24 1 B 234
Call to order
SHOE BOX 120W MOGUL 5000K

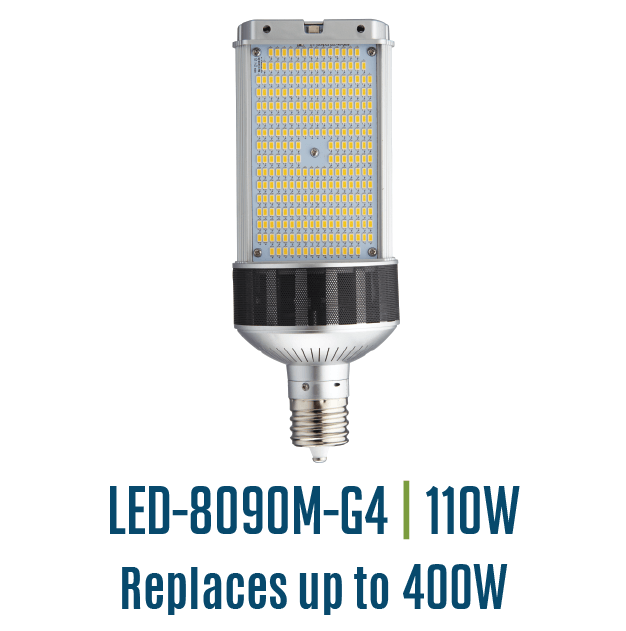

LED-8090M50-G4
531 178 21 1312 B 1426
Call to order
SHOE BOX 80W MOGUL 5000K

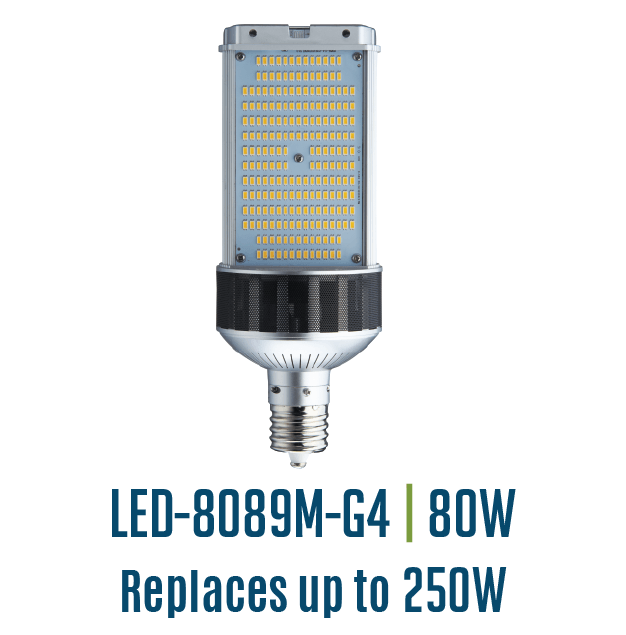

LED-8089M50-G4
0 44 0 20 B 0
Call to order
SHOE BOX 80W MOGUL 5000K
LED-8089M50C-G4
102 C
Call to order
SHOE BOX 30W EDISON 3000K
COUNTRY:
USA/CAN
CRI:
81.4
DIMENSION _OL x W:
6" X 2.75"
DIMMABLE:
No
DUV:
0.0006
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
8.1
MIN FIXTURE SIZE-W:
6.8
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.9322
R9:
4.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
8.5 Lbs
SHIPPER CTN_DIMS_(LxWxH):
13.6 X 13.6 X 8.6 in.
THD:
0.1295
UCC-14:
10 8440060 8284 7
UNIT CTN WEIGHT:
0.89 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
4.2 X 4.2 X 8.1 in.
UPC-12:
8440060 8284 0
WARRANTY:
5 Year Limited
WEIGHT:
0.586 Lbs

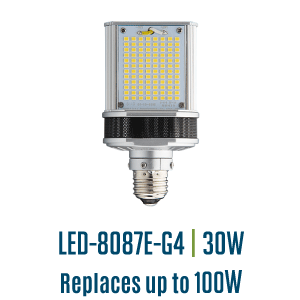

LED-8087E30-A
0 0 3477 2 30W B 100W HID 0 120-277V E26 Edison 3000K
Call to order
USE 8087E40-G4
COUNTRY:
USA/CAN
CRI:
83.5
DIMENSION _OL x W:
6" X 2.75"
DIMMABLE:
No
DUV:
0.0005
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
8.1
MIN FIXTURE SIZE-W:
6.8
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.92
R9:
11.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
8.5 Lbs
SHIPPER CTN_DIMS_(LxWxH):
13.6 X 13.6 X 8.6 in.
THD:
0.1165
UCC-14:
10 8440060 8258 8
UNIT CTN WEIGHT:
0.89 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
4.2 X 4.2 X 8.1 in.
UPC-12:
8440060 8258 1
WARRANTY:
5 Year Limited
WEIGHT:
0.586 Lbs
LED-8087E40-A
28 4 4171 0 0 30W U 100W HID 0 120-277V E26 Edison 4000K
Call to order
SHOE BOX 50W EDISON 3000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
7.9 X 3.75 in.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
5.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
>.90
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
15.07 Lbs
SHIPPER CTN_DIMS_(LxWxH):
16.7 X 15 X 10.8 in.
THD:
<20%
UCC-14:
10 8440060 8338 7
UNIT CTN WEIGHT:
1.539 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.3 X 4.7 X 10.1 in.
UPC-12:
8440060 8338 0
WARRANTY:
5 Year Limited
WEIGHT:
1.26 Lbs
LED-8088E30-G4
-25 1 5750 0 0 50W B 175W HID 0 120-277V E26 Edison 3000K
Call to order
SHOE BOX 50W EDISON 4000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
7.9 X 3.75 in.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
5.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
>.90
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
15.07 Lbs
SHIPPER CTN_DIMS_(LxWxH):
16.7 X 15 X 10.8 in.
THD:
<20%
UCC-14:
10 8440060 8340 0
UNIT CTN WEIGHT:
1.539 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.3 X 4.7 X 10.1 in.
UPC-12:
8440060 8340 3
WARRANTY:
5 Year Limited
WEIGHT:
1.26 Lbs
LED-8088E40-G4
-2 19 6250 38 120 50W B 175W HID 18 120-277V E26 Edison 4000K
Call to order
SHOE BOX 50W EDISON 4000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
7.9 X 3.75 in.
DIMMABLE:
No
DUV:
0.00124
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
5.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.688
R9:
26.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
15.07 Lbs
SHIPPER CTN_DIMS_(LxWxH):
16.7 X 15 X 10.8 in.
THD:
42.06
UCC-14:
10 8440060 8268 7
UNIT CTN WEIGHT:
1.539 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.3 X 4.7 X 10.1 in.
UPC-12:
8440060 8268 0
WARRANTY:
5 Year Limited
WEIGHT:
0.586 Lbs

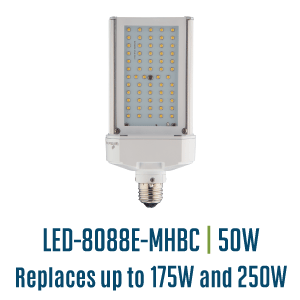

LED-8088E40-MHBC
30 18 5188 16 50W B Up to 250W Probe or Pulse Start Ballast 0 MH BALLAST ONLY E26 Edison 4000K
Call to order
SHOE BOX 50W EDISON 5700K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
7.9 X 3.75 in.
DIMMABLE:
No
DUV:
0.00145
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
5.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.684
R9:
23.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
15.07 Lbs
SHIPPER CTN_DIMS_(LxWxH):
16.7 X 15 X 10.8 in.
THD:
41.81
UCC-14:
10 8440060 8269 4
UNIT CTN WEIGHT:
1.539 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.3 X 4.7 X 10.1 in.
UPC-12:
8440060 8269 7
WARRANTY:
5 Year Limited
WEIGHT:
1.26 Lbs
LED-8088E57-MHBC
73 48 6282 44 108 50W B Up to 250W Probe or Pulse Start Ballast 0 MH BALLAST ONLY E26 Edison 5700K
Call to order

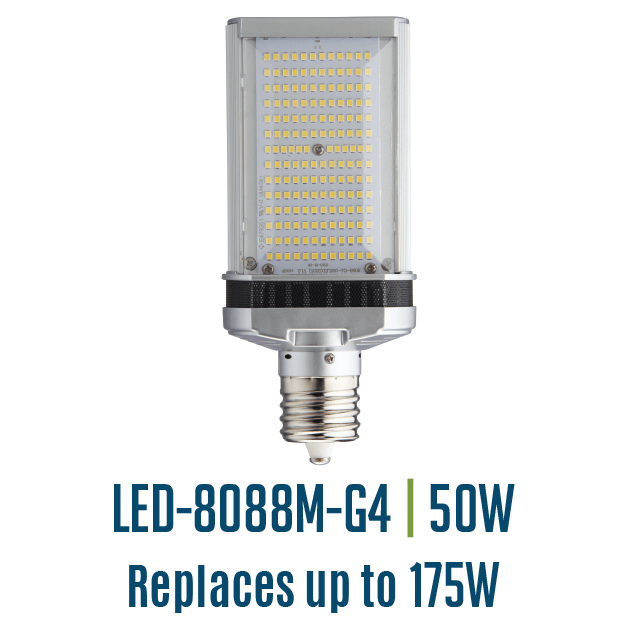

SHOE BOX 50W MOGUL 4000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
8.5 X 3.75 in.
DIMMABLE:
No
DUV:
0.00124
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
5.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.688
R9:
26.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
15.459 Lbs
SHIPPER CTN_DIMS_(LxWxH):
16.7 X 15 X 10.8 in.
THD:
42.06
UCC-14:
10 8440060 8270 0
UNIT CTN WEIGHT:
1.581 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.3 X 4.7 X 10.1 in.
UPC-12:
8440060 8270 3
WARRANTY:
5 Year Limited
WEIGHT:
1.3 Lbs

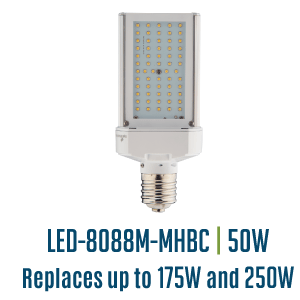

LED-8088M40-MHBC
2 7 5188 -24 50W B Up to 250W Probe or Pulse Start Ballast 0 MH BALLAST ONLY E39 Mogul 4000K
Call to order
SHOE BOX 50W MOGUL 5700K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
8.5 X 3.75 in.
DIMMABLE:
No
DUV:
0.00145
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
11.9
MIN FIXTURE SIZE-W:
5.4
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.684
R9:
23.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
15.459 Lbs
SHIPPER CTN_DIMS_(LxWxH):
16.7 X 15 X 10.8 in.
THD:
41.81
UCC-14:
10 8440060 8271 7
UNIT CTN WEIGHT:
1.581 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.3 X 4.7 X 10.1 in.
UPC-12:
8440060 8271 0
WARRANTY:
5 Year Limited
WEIGHT:
1.3 Lbs
LED-8088M57-MHBC
300 2 6282 2 0 50W B Up to 250W Probe or Pulse Start Ballast 1 MH BALLAST ONLY E39 Mogul 5700K
Call to order
SHOE BOX 80W MOGUL 3000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
11.4 X 4.3 in.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
6.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
>.90
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
25.52 Lbs
SHIPPER CTN_DIMS_(LxWxH):
18.5 X 18.5 X 13.8 in.
THD:
<20%
UCC-14:
10 8440060 8348 6
UNIT CTN WEIGHT:
2.83 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 5.9 X 13.2 in.
UPC-12:
8440060 8348 9
WARRANTY:
5 Year Limited
WEIGHT:
2.35 Lbs
LED-8089M30-G4
71 30 9200 18 80W B 250W HID 0 120-277V EX39 Protected Mogul 3000K
Call to order
SHOE BOX 80W MOGUL 4000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
11.4 X 4.3 in.
DIMMABLE:
No
DUV:
-0.00230
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
6.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.00441
R9:
13.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
25.52 Lbs
SHIPPER CTN_DIMS_(LxWxH):
18.5 X 18.5 X 13.8 in.
THD:
48.07
UCC-14:
10 8440060 8272 4
UNIT CTN WEIGHT:
2.83 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 5.9 X 13.2 in.
UPC-12:
8440060 8272 7
WARRANTY:
5 Year Limited
WEIGHT:
2.35 Lbs

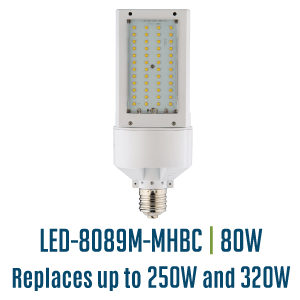

LED-8089M40-MHBC
9 20 7941 3 80W B Up to 320W Probe or Pulse Start Ballast 0 MH BALLAST ONLY E39 Mogul 4000K
Call to order
SHOE BOX 80W MOGUL 5000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
11.4 X 4.3 in.
DIMMABLE:
No
DUV:
-0.00035
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
6.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
0.450
R9:
13.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
25.52 Lbs
SHIPPER CTN_DIMS_(LxWxH):
18.5 X 18.5 X 13.8 in.
THD:
47.79
UCC-14:
10 8440060 8273 1
UNIT CTN WEIGHT:
2.83 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 5.9 X 13.2 in.
UPC-12:
8440060 8273 4
WARRANTY:
5 Year Limited
WEIGHT:
2.35 Lbs
LED-8089M50-MHBC
746 5 7635 0 80W B Up to 320W Probe or Pulse Start Ballast 0 MH BALLAST ONLY E39 Mogul 5000K
Call to order
SHOE BOX 120W MOGUL 3000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
11.4 X 4.3 in.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
6.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
>.90
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
25.52 Lbs
SHIPPER CTN_DIMS_(LxWxH):
18.5 X 18.5 X 13.8 in.
THD:
<20%
UCC-14:
10 8440060 8353 3
UNIT CTN WEIGHT:
2.83 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 5.9 X 13.2 in.
UPC-12:
8440060 8353 3
WARRANTY:
5 Year Limited
WEIGHT:
2.35 Lbs
LED-8090M30-G4
3 2 13800 33 120W B 400W HID 0 120-277V EX39 Protected Mogul 3000K
Call to order
SHOE BOX 110W MOGUL 4000K
COUNTRY:
USA/CAN
CRI:
>80
DIMENSION _OL x W:
11.4 X 4.3 in.
DIMMABLE:
No
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
6.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
>.90
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cULus
SHIPPER CTN WEIGHT:
25.52 Lbs
SHIPPER CTN_DIMS_(LxWxH):
18.5 X 18.5 X 13.8 in.
THD:
<20%
UCC-14:
10 8440060 8355 4
UNIT CTN WEIGHT:
2.83 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 5.9 X 13.2 in.
UPC-12:
8440060 8355 7
WARRANTY:
5 Year Limited
WEIGHT:
2.35 Lbs

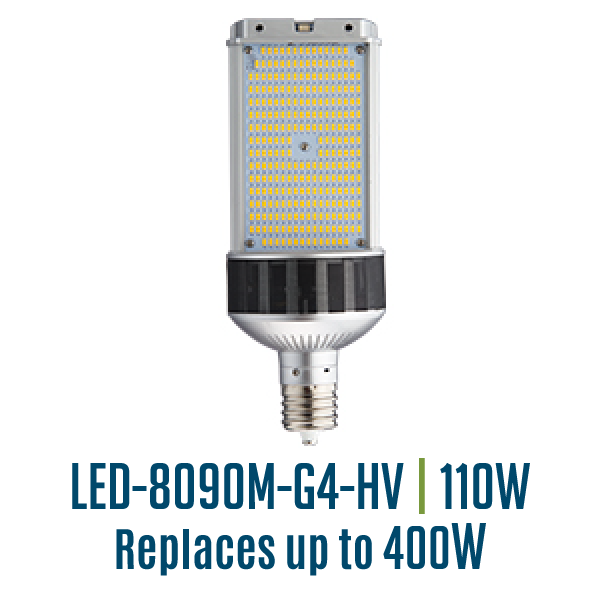

LED-8090M40-G4
577 66 15000 28 856 120W B 400W HID 628 120-277V EX39 Protected Mogul 4000K
Call to order
SHOE BOX 110W MOGUL 4000K
COUNTRY:
USA/CAN
CRI:
84.0
DIMENSION _OL x W:
11.4 X 4.3 in.
DIMMABLE:
No
DUV:
0.0008
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
6.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
84.6
R9:
18.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
25.52 Lbs
SHIPPER CTN_DIMS_(LxWxH):
18.5 X 18.5 X 13.8 in.
THD:
18.86
UCC-14:
10 8440060 8274 8
UNIT CTN WEIGHT:
2.83 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 5.9 X 13.2 in.
UPC-12:
8440060 8274 1
WARRANTY:
5 Year Limited
WEIGHT:
2.35 Lbs
LED-8090M40-MHBC
38 69 9929 0 73 120W B Up to 400W Probe or Pulse Start Ballast 0 MH BALLAST ONLY E39 Mogul 4000K
Call to order
SHOE BOX 120W MOGUL 5000K
COUNTRY:
USA/CAN
CRI:
77.0
DIMENSION _OL x W:
11.4 X 4.3 in.
DIMMABLE:
No
DUV:
-0.0011
LIGHT DISTRIBUTION:
Directional / TYPE V
MIN FIXTURE SIZE-H:
12.0
MIN FIXTURE SIZE-W:
6.0
OPERATING TEMPERATURE:
-40°F to +122°F
PF:
81
R9:
0.0
RATED LED LIFE:
50,000 Hrs.
SAFETY CERT:
cRUus
SHIPPER CTN WEIGHT:
25.52 Lbs
SHIPPER CTN_DIMS_(LxWxH):
18.5 X 18.5 X 13.8 in.
THD:
18.15
UCC-14:
10 8440060 8275 5
UNIT CTN WEIGHT:
2.83 lbs.
UNIT CTN_DIMENSIONS _LxWxH:
5.9 X 5.9 X 13.2 in.
UPC-12:
8440060 8275 8
WARRANTY:
5 Year Limited
WEIGHT:
2.35 Lbs
LED-8090M50-MHBC
141 35 10810 156 120W B Up to 400W Probe or Pulse Start Ballast 0 MH BALLAST ONLY E39 Mogul 5000K
Call to order
SIGN UP FOR OUR NEWSLETTER
